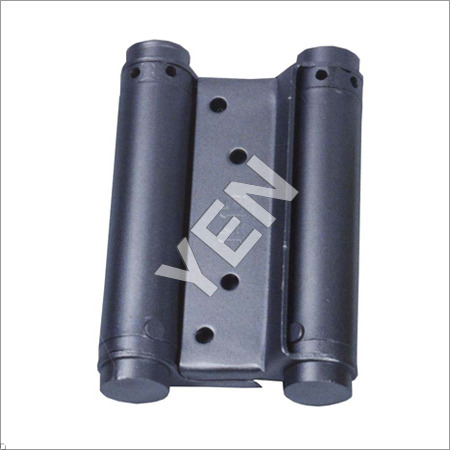

Double Action Spring Hinges

Name: Double Action Spring Hinges
Brand: S. N. INDUSTRIES
Price: 540 INR
Availability: InStock

Price 540 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Double Action Spring Hinges Specification

Tensile Strength
High tensile strength suitable for frequent use

Capacity
Supports light to medium doors

Operation Type
Double Action

Height
127 mm

Load Capacity
Up to 25 kg per pair

Anti Corrosion
Yes

Standard
Conforms to commercial hardware standards

Weather Resistance
Yes

Security Features
Spring-loaded for secure return

Finish Type
Satin Finish

Operating Temperature
-20C to 80C

Coating Type
No additional coating

Function
Enables bi-directional door opening and automatic closing

Width
38 mm

Thickness
2.0 mm

Surface Finish
Brushed Stainless

Usage & Applications
Swinging doors for cafes, saloons, kitchens, offices

Product Type
Double Action Spring Hinges

Material
Steel

Size
Standard

Weight
420 g per pair

Color
Satin Stainless

Application
Saloon Doors, Cafe Doors, Residential and Commercial Use

Product Model
DAH-127-SS

Mounting Type
Door Frame Mount

Design Type
Double Action Spring Mechanism

Locking Type
Non-locking

Installation Type
Surface Mounted

Compatible Door Material
Wooden or Metal Doors

Adjustability
Tension adjustable to control closing force

Spring Mechanism
Internal dual spring action for durability

Door Thickness Compatibility
25 mm - 40 mm

Included Accessories
Mounting screws and installation manual

Fire Rating
Non-fire rated

Noise Level
Silent smooth operation

Lead Time
Ready stock or 3-5 days for bulk

Packaging Type
Pair packed in box

Cycle Tested
100,000 cycles

Double Action Spring Hinges Trade Information

Minimum Order Quantity
50 Pieces

Main Domestic Market
All India

About Double Action Spring Hinges

Double Action Spring Hinges

These products functionally reliable and innovative door closers also feature superior integration of modern process technologies that ensure in the products superior functionality standards.

Thickness	2.1 - 2.5 mm
Suitable For	Door
Packaging Type	Box
Finish Type	Coated
Size	4 Inch
Hinge Type	Spring Hinge
Material	M.S (Mild Steel)
Brand	Yen

Heaviest gauge body and flaps
Easier to install
Painted shades available
75mm, 100mm, 125mm & 150mm sizes available
Spring strength adjustable
Replaces normal hinges

Technical Details

Silent and Durable Spring Mechanism

Engineered with an internal dual spring, the DAH-127-SS hinges provide silent and smooth bi-directional swinging. The tension adjustment lets you fine-tune the closing force, making it suitable for frequently used doors in bustling cafes or busy kitchens. Cycle-tested for 100,000 uses, these hinges are built for exceptional longevity.

Versatile Compatibility and Easy Installation

With a standard size (127 mm height, 38 mm width) and a thickness of 2.0 mm, these hinges mount easily on both wooden and metal doors ranging from 25 mm to 40 mm thick. Comprehensive accessories, including mounting screws and an installation manual, are packaged as a pair for convenient setup.

Stylish and Reliable Construction

Crafted from high-tensile, corrosion-resistant steel with a satin brushed finish, these hinges are well-suited for light to medium doors weighing up to 25 kg per pair. Their refined look, non-fire rated build, and weather resistance make them ideal for residential, commercial, and hospitality applications.

FAQ's of Double Action Spring Hinges:

Q: How do I adjust the closing force on these double action spring hinges?

A: You can increase or decrease the hinge's closing force by adjusting the tension mechanism on each hinge. Simply follow the steps provided in the included installation manual, using the provided tools to achieve your desired closing speed.

Q: What types of doors are compatible with the DAH-127-SS double action spring hinges?

A: These hinges are designed for use with both wooden and metal doors that have a thickness between 25 mm and 40 mm. They are perfect for applications such as swinging saloon or cafe doors in residential or commercial spaces.

Q: When is it ideal to use these bi-directional spring hinges?

A: These hinges are ideal when you require both-way door opening-commonly needed for kitchen, cafe, or saloon doors-providing automatic self-closing from either direction without noise or impact.

Q: Where can these double action hinges be installed for best results?

A: They are best installed on interior light to medium-duty doors in cafes, saloons, kitchens, offices, and other residential or commercial settings requiring frequent and quiet access.

Q: What is the installation process for the double action spring hinges?

A: Installation involves surface mounting the hinges onto the door frame and door edge. The product is supplied with mounting screws and a detailed manual to guide you through secure and correct fitting.

Q: What are the main benefits of using these double action spring hinges?

A: The key benefits include silent, smooth operation, bi-directional door opening and closing, high durability with 100,000 cycle testing, anti-corrosion protection, and easy adjustability-providing peace of mind for both appearance and performance.

Q: Are these hinges suitable for use in outdoor or humid environments?

A: Yes, their brushed stainless steel construction is corrosion-resistant and weather resistant, making them suitable for both indoor and protected semi-outdoor applications.
